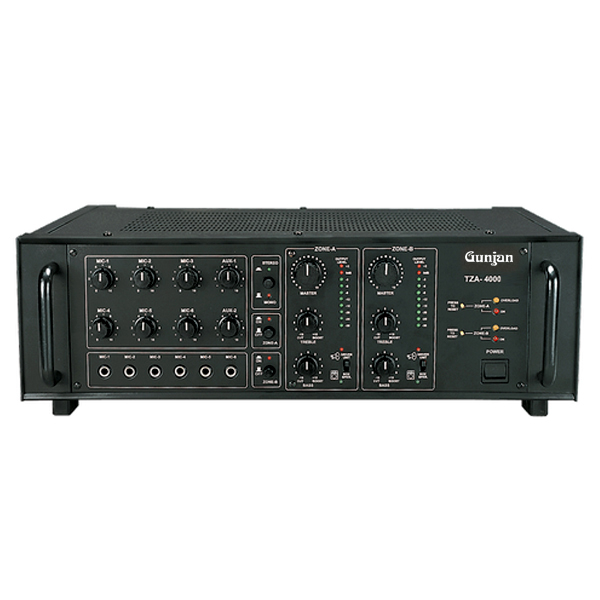

Description
- 6 Mic & 2 Aux Inputs.
- ‘Stereo’ Music Operation for DJ programmes.
- Facilitates connection and operation of two separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for Mosque & other Places of Worship.
- Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.
- Re settable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
| Power Output | 300W + 300W Max., 200W + 200W RMS at 10% THD, 180W + 180W RMS at 5% THD, 165W + 165W RMS at 2% THD |
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | Mono 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V for each zone |
| Power Supply | DC: 24V (2×12V Car Battery) AC: 220-240V 50/60Hz |
| Power Consumption | DC: 9A AC: 700VA |
| Dimensions | W510 × H172 × D385 mm |
| Weight | 26.2kg |
